AUTOMATED
PRODUCTION
PRECISION
Pinpoint pattern alignment reducing errors.
SPEED
High-volume continuous flow production.
AUTOMATION
Reduced labor costs with robotic arms.
PLC CONTROL
Delta Touch HMI with saved recipes.

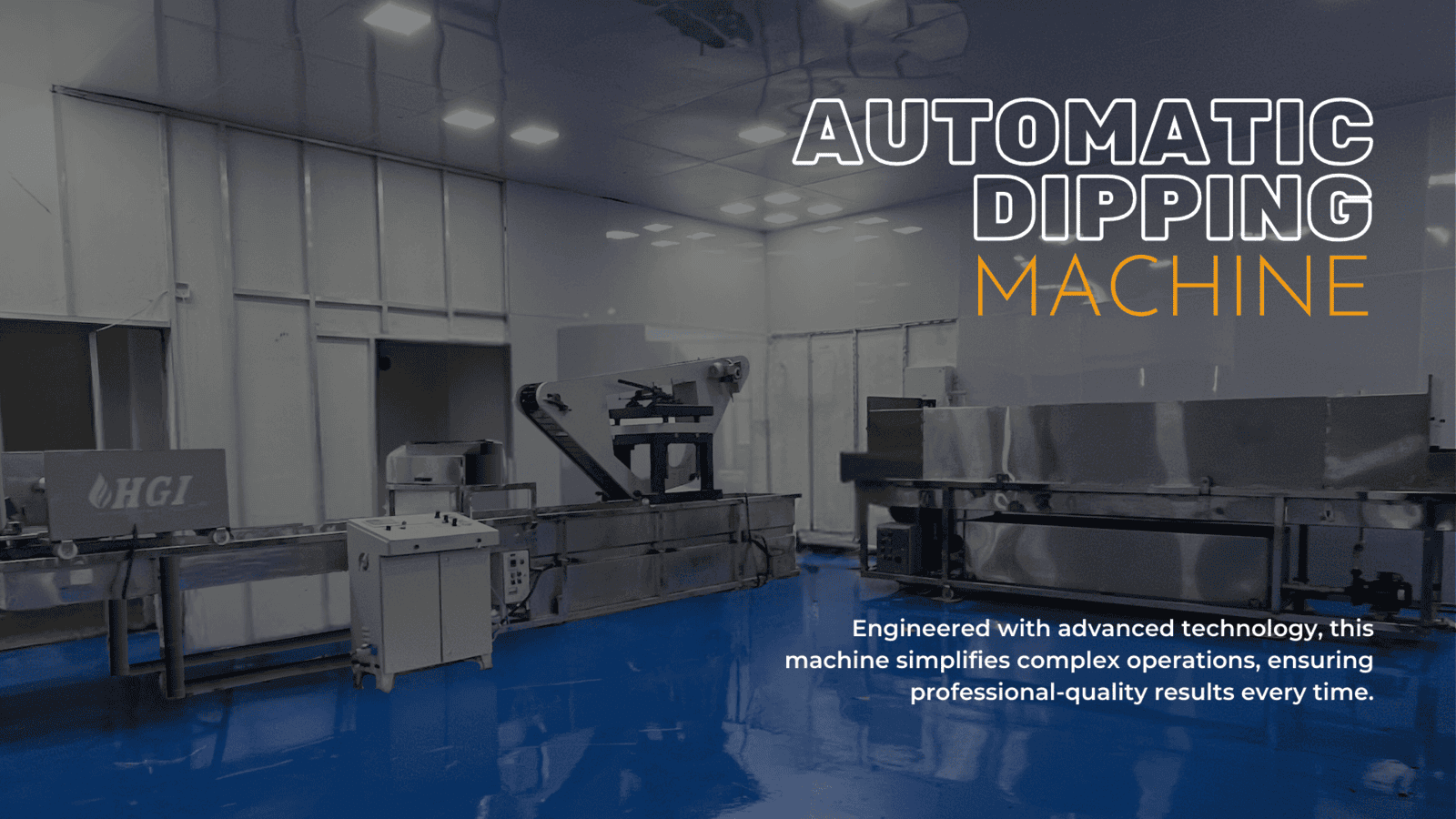

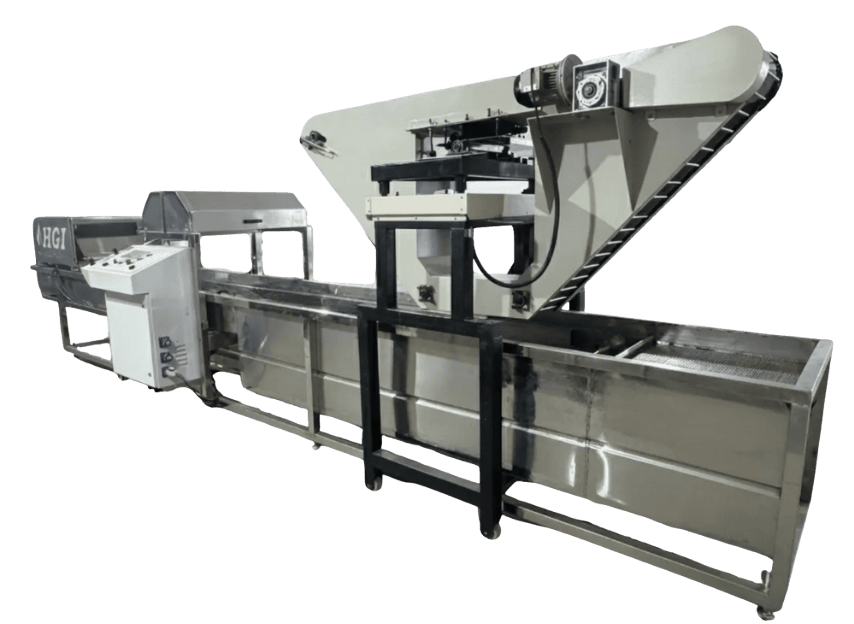

AUTO DIPPING CONVEYOR
Continuous Flow System • Model: ADC-22| DIMENSIONS | 22' (L) x 4' (W) x 9' (H) |
| MATERIAL | SS 304 Grade (2mm Thick) |
| ACTIVATOR | Auto Reciprocating HVLP Spray |
| HEATING | 12 KW (Three Phase) |
| CONTROL | Delta PLC + Servo Motors |
| POWER | 18 KW Total Consumption |
Includes automatic film feeding, activator spraying, and divider bars. Perfect for mass production runs.
REQUEST PRICING
RINSING LINE
High Pressure Wash • Model: AWC-20
| DIMENSIONS | 20' (L) x 4' (W) x 5' (H) |
| MATERIAL | SS 304 Grade |
| JETS | 360° SS 304 Nozzles |
| PUMP | 1 HP x 2 (High Pressure) |
| CONVEYOR | SS Chain Mesh |
| POWER | 3 KW |
Automated washing tunnel to remove PVA residue after dipping. Water recycling system included.
REQUEST PRICINGDRYING CONVEYOR
Infrared Curing • Model: ADC-IR| DIMENSIONS | 20' (L) x 4' (W) x 7' (H) |
| BODY | Mild Steel Painted |
| HEATING | Infrared (IR) Tubes |
| TEMP | Digital PID Control |
| POWER | 18 KW |
Rapid drying tunnel. Ensures basecoat and topcoat are perfectly cured for durability.
REQUEST PRICING
5-AXIS ROBOTIC PAINTER
Precision Spraying • Model: ARP-5X
| DIMENSIONS | 8' (L) x 5' (W) x 6' (H) |
| AXIS | 5-Axis Servo Control |
| MEMORY | 200+ Programs |
| SCREEN | 7-inch Color Touch |
| POWER | 3 KVA |
Programmable PLC control for basecoat and topcoat application. Consistent spray pattern reducing paint waste.
REQUEST PRICINGLIVE DEMONSTRATION
24/7 Global Assistance
CUSTOMER SUPPORT HUB
Experience the magic of hydrographics with the ease and precision of automation. Our machines are designed to streamline the entire water transfer printing process, from pattern selection to final finish. Here's what makes them a game-changer:
- Precision Printing: Our automatic machines ensure pinpoint accuracy in pattern alignment, reducing errors and increasing efficiency.
- Efficient Immersion:No more manual dipping. These machines handle the immersion process flawlessly, ensuring consistent and even transfers every time.
- User-Friendly Interface: Don't worry about a steep learning curve. Our machines come with an intuitive interface that makes operation a breeze, whether you're a seasoned pro or a newbie.
- Swift Processing:Speed up your production cycle with optimized automation. Complete more projects in less time without compromising quality.
Precision Printing
Efficient Immersion
User Friendly
Swift Processing

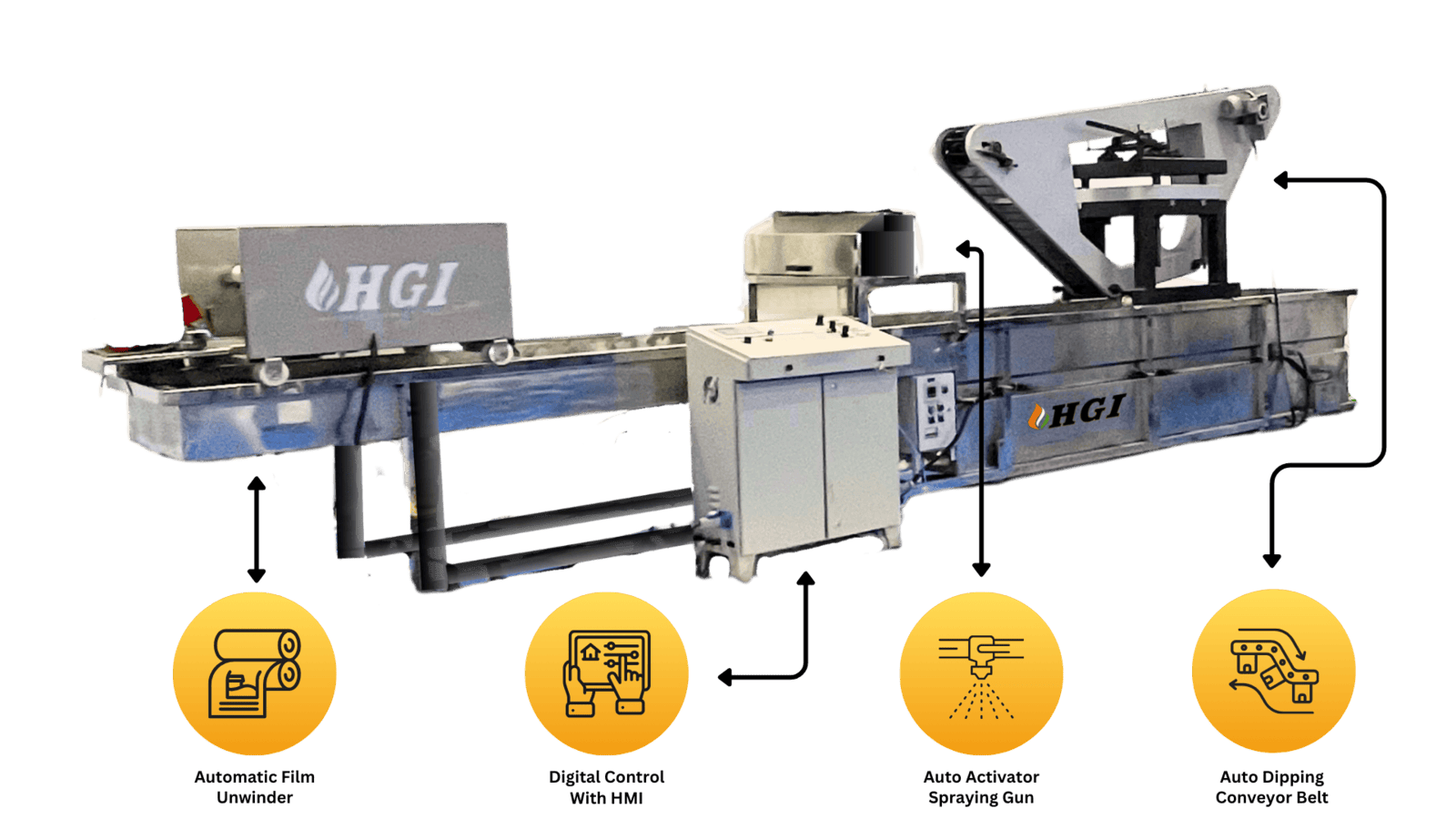

Auto Dipping Conveyor
Specifications
| Machine Dimensions | 22 Feet Length X 4 Feet Width X 9 Feet Height |
| Material | Thickness = 2mm +- 2 mm , 304 Grade Stainless steel |
| Water Circulation System | Pump, AC208-240V, Single Phase, 50 HZ, 750W*2/1HP |
| Activator Sprayer | 1pcs HVLP spray gun with fluid pumping system plus single-axis reciprocating system |
| Heating | Three Phase, 12KW |
| Controls | Delta HMI, Plc and Servo motors with operation control panel |
| Power Consumption | 18 Kw |
Demo Videos

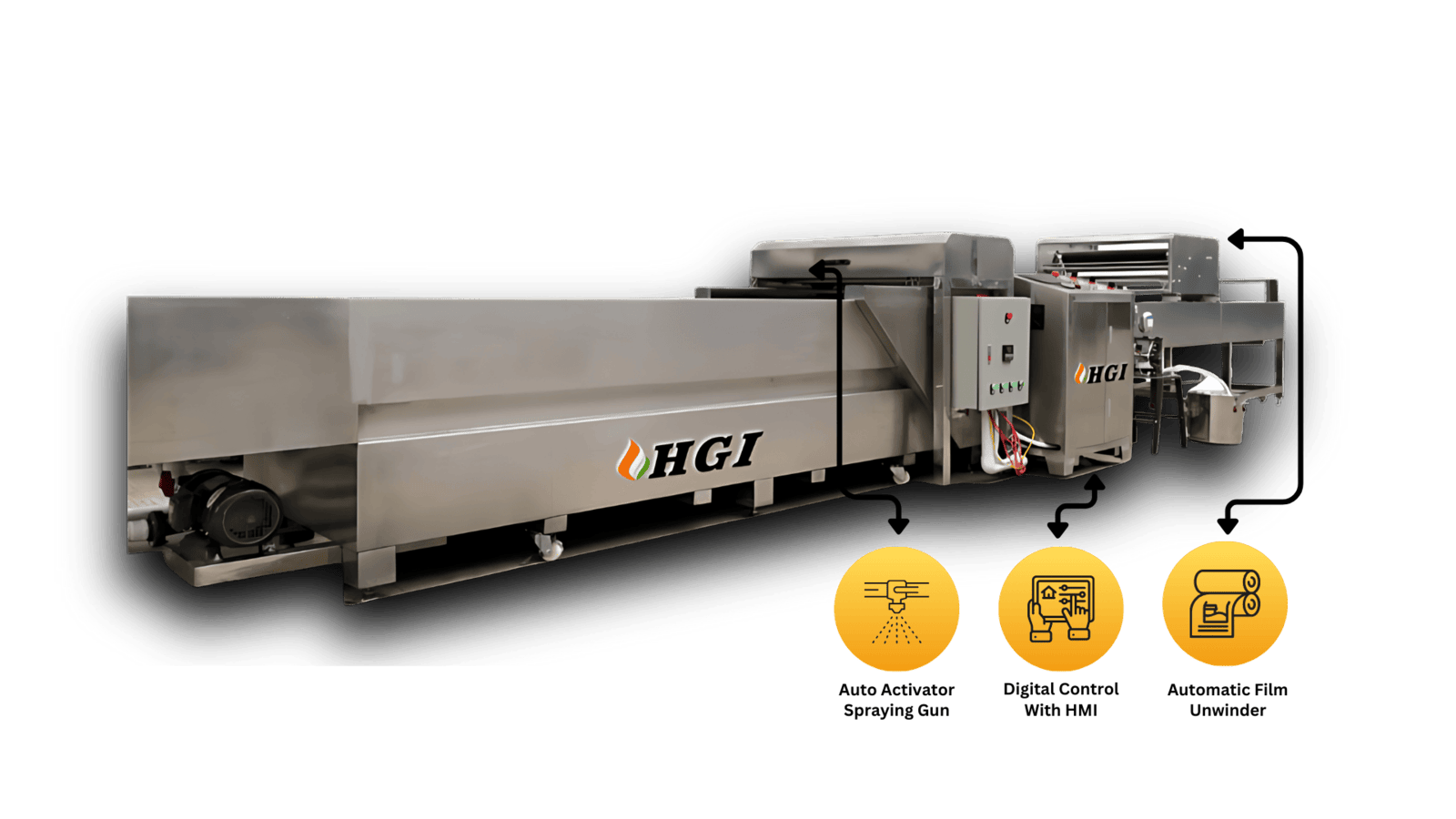

Semi-Automatic Dipping Conveyor
Our cutting-edge hydro dip machines automate every step of the process, ensuring consistently flawless results. Whether you're a hydrographics enthusiast or a professional, these machines streamline the water transfer printing experience, reducing the risk of errors and boosting productivity. Whether you're customising automotive parts, home decor, or sports equipment, our automatic hydro dip machines are the perfect choice for achieving vibrant, high-quality designs with ease. Explore our range of automatic hydro dip machines and revolutionise your hydrographics projects today.
Specifications
| Machine Dimensions | 22 Feet Length X 4 Feet Width X 9 Feet Height |
| Material | Thickness = 2mm +- 2 mm , 304 Grade Stainless steel |
| Water Circulation System | Pump, AC208-240V, Single Phase, 50 HZ, 750W*2/1HP |
| Activator Sprayer | 1pcs HVLP spray gun with fluid pumping system plus single-axis reciprocating system |
| Heating | Three Phase, 12KW |
| Controls | Delta HMI, Plc and Servo motors with operation control panel |
| Power Consumption | 18 Kw |

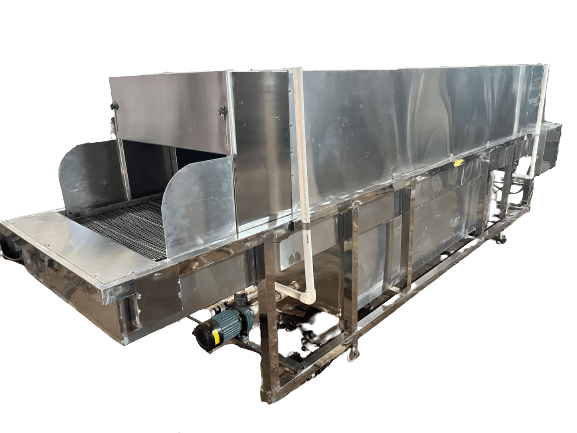

Automatic Hydro Dipping Washing Conveyor
Specifications
| Machine Dimensions | 20 Feet Length X 4 Feet Width X 5 Feet Height |
| Material | Thickness = 2mm +- 2 mm , 304 Grade Stainless steel |
| Water Circulation System | Pump, AC208-240V, Single Phase, 50 HZ, 750W*2/1HP |
| Spray Nozzles | S.Steel 304 grade |
| Power Consumption | 3 Kw |
Product Images

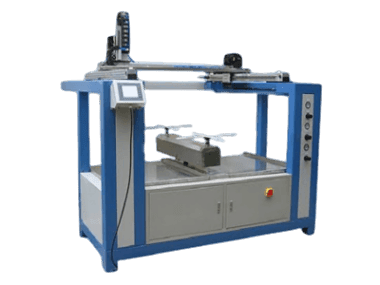

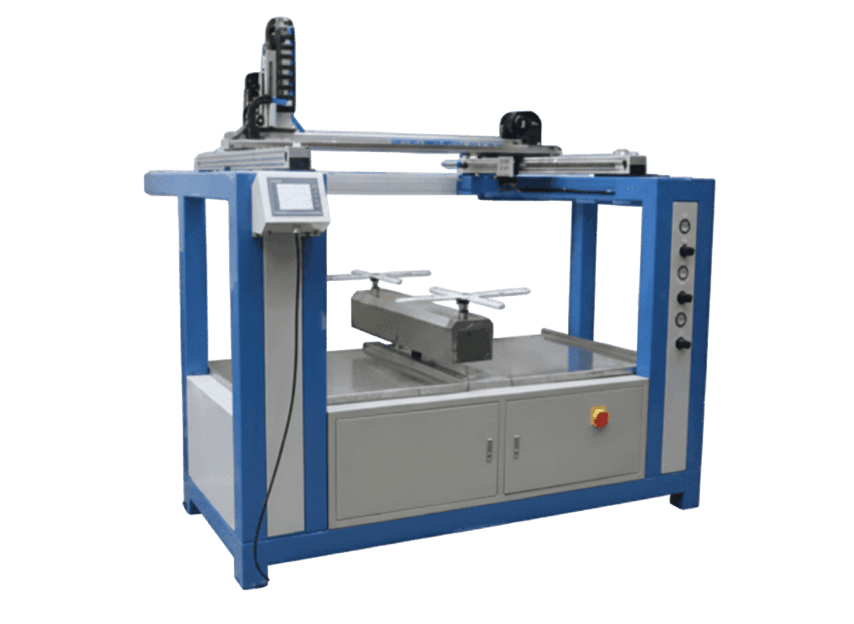

Automatic 5 Axis Robotic Painting Machine
Our versatile five-axis painting machine is designed to efficiently apply paint to various objects. With programmable PLC control of servo motors, the machine can be precisely positioned and tailored to accommodate a wide range of painting needs. Moreover, it is compatible with various spray guns and can be configured to suit specific requirements.
Specifications
| Machine Dimensions | 8 Feet Length X 5Feet Width X 6 Feet Height |
| Material | Thickness = 2mm +- 2 mm , Mild Steel Painted |
| Digital control/config | One set spray gun with more than 10 operation states, be able to store 200 different products’ programming Touch screen is 7-inch color screen. PLC Delta series. |
| Power Consumption | 3 Kwa |

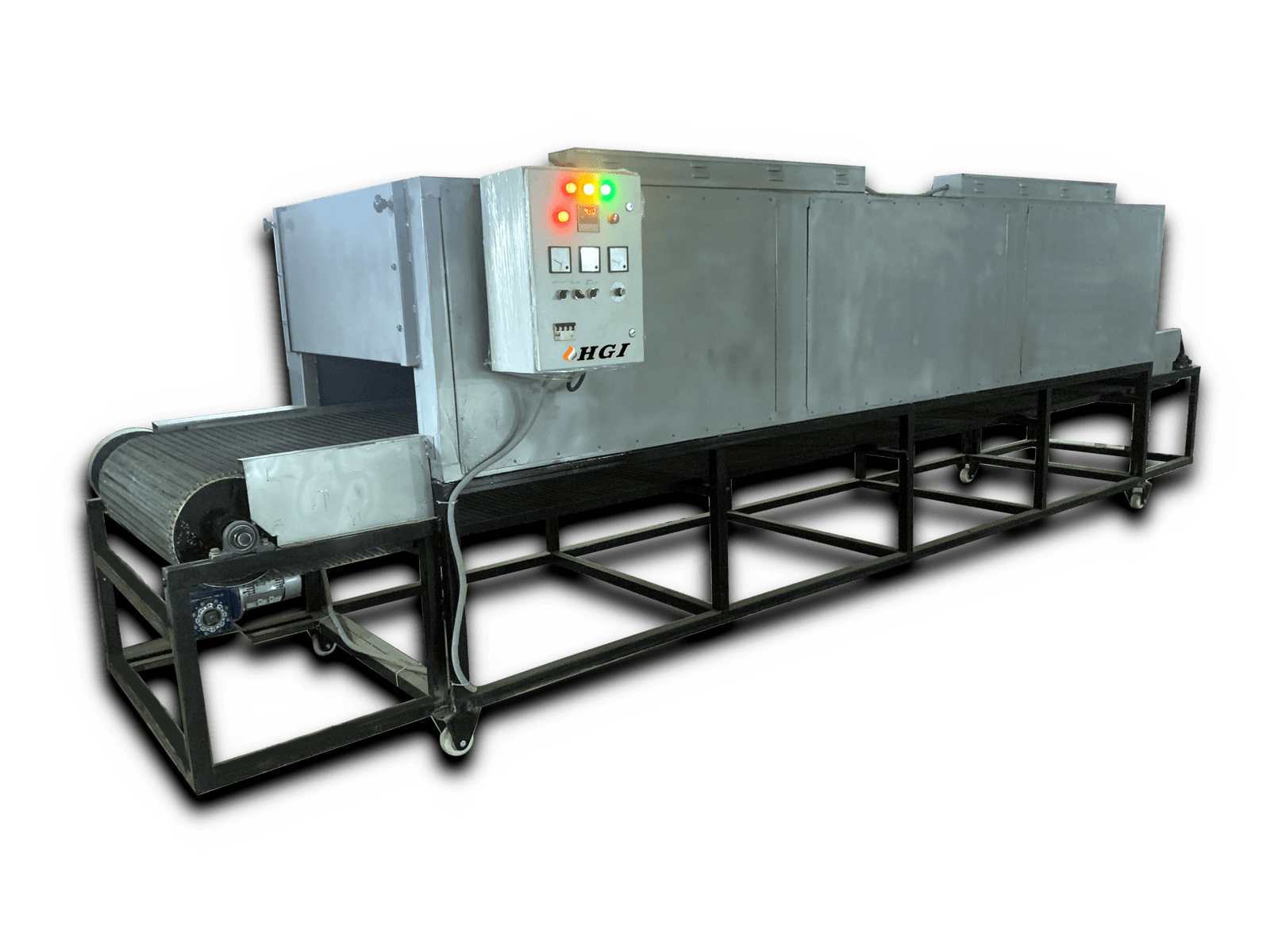

Automatic Hydro Dipping Drying Conveyor
Specifications
| Machine Dimensions | 20 Feet Length X 4 Feet Width X 7 Feet Height |
| Material | Thickness = 2mm +- 2 mm , Mild Steel Painted |
| Heating | Infra Red Tube |
| Power Consumption | 18 Kw |
